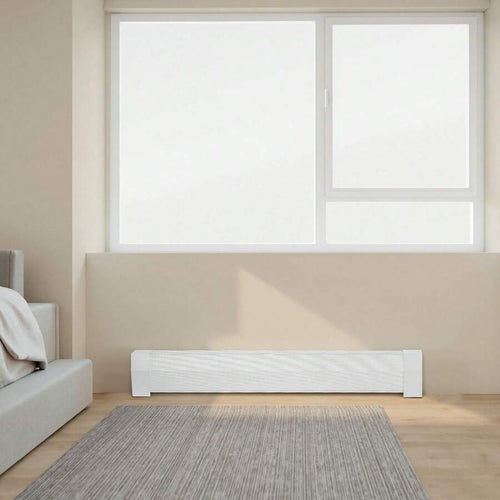

White Steel Baseboard Cover — Front Panel

Refresh the visible face of a compatible hydronic baseboard installation with a white steel replacement front panel. This product is a cover component only; it is not a heater and does not create heat on its own.

Three selectable lengths help match an existing enclosure, but correct fit depends on more than nominal length. Measure the original backplate, element position, clearance, and depth before choosing 3ft, 4ft, or 5ft.

A cleaner front for a compatible existing unit

• Replacement front cover for an existing baseboard installation.
• Q235A steel construction listed in the source information.
• White powder-coated finish.

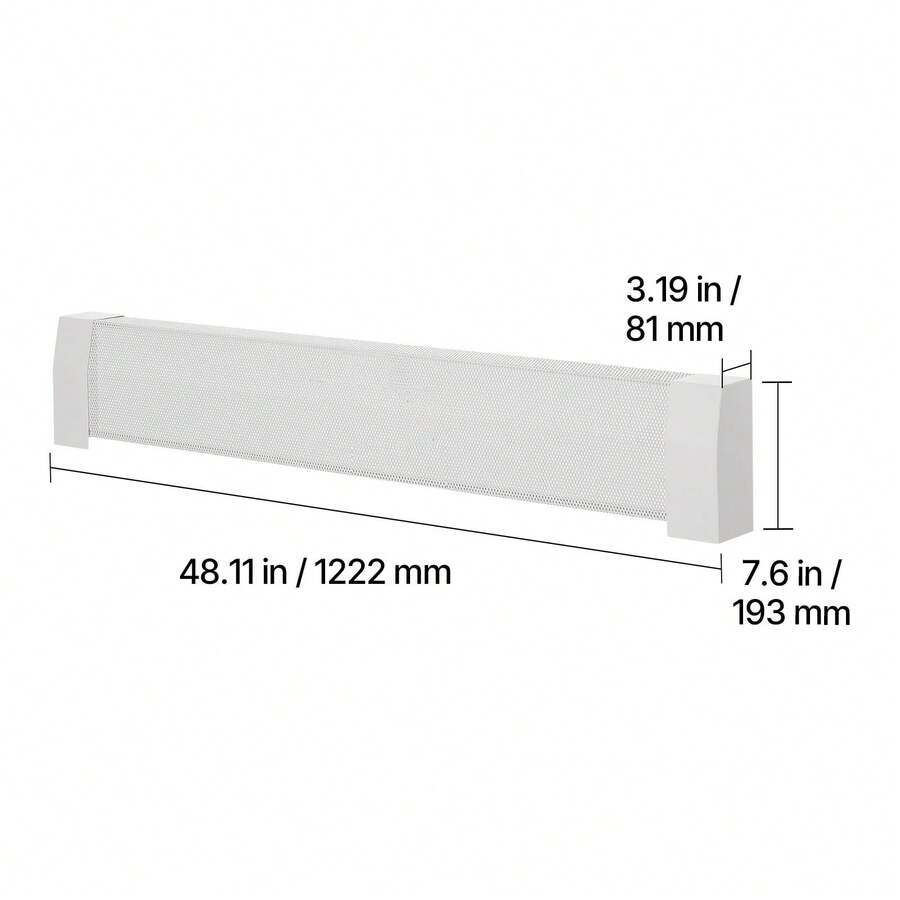

• Selectable 3ft, 4ft, and 5ft lengths.
• Vented design intended to preserve airflow around the existing heating element.

Choose the right option

Select 3ft, 4ft, or 5ft according to the measured installation. These values identify length, not color. Do not choose from room size alone; compare the physical backplate and clearances with the measurements below.

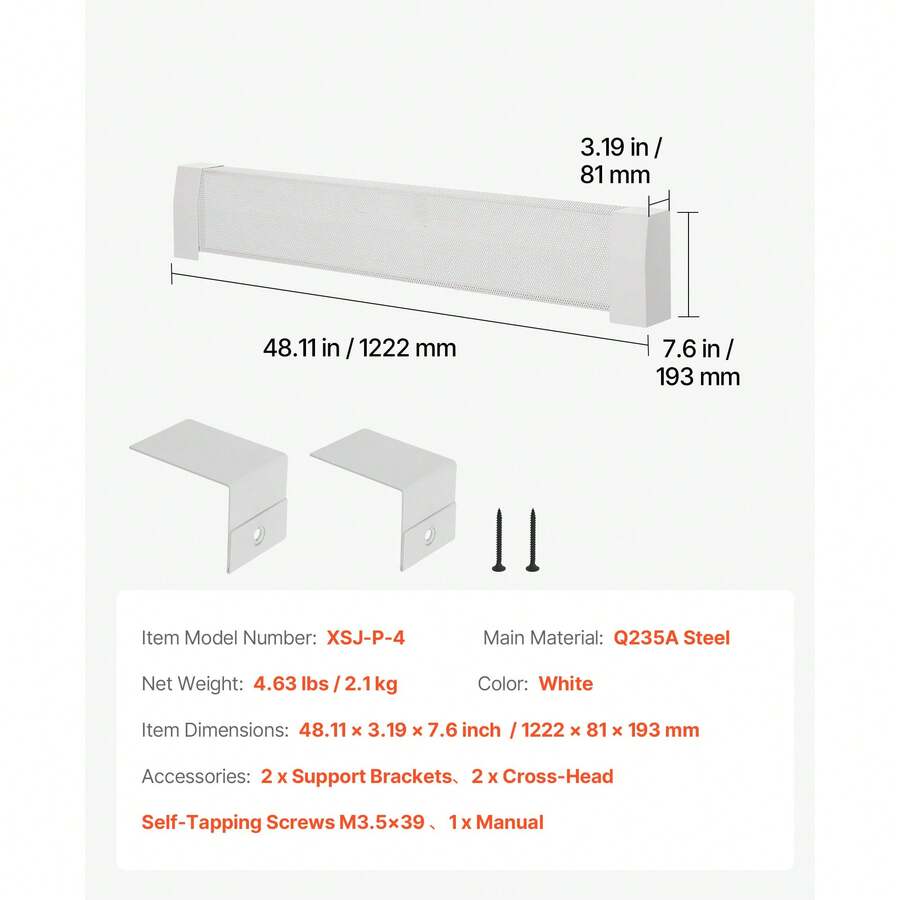

Product specifications

Measure before selecting a length

Measure the existing installation at several points because older enclosures and walls may not be perfectly straight. Confirm the usable length, height from the floor to the top of the backplate, position of the heating element, total projection from the wall, and the condition of the existing brackets or attachment points.

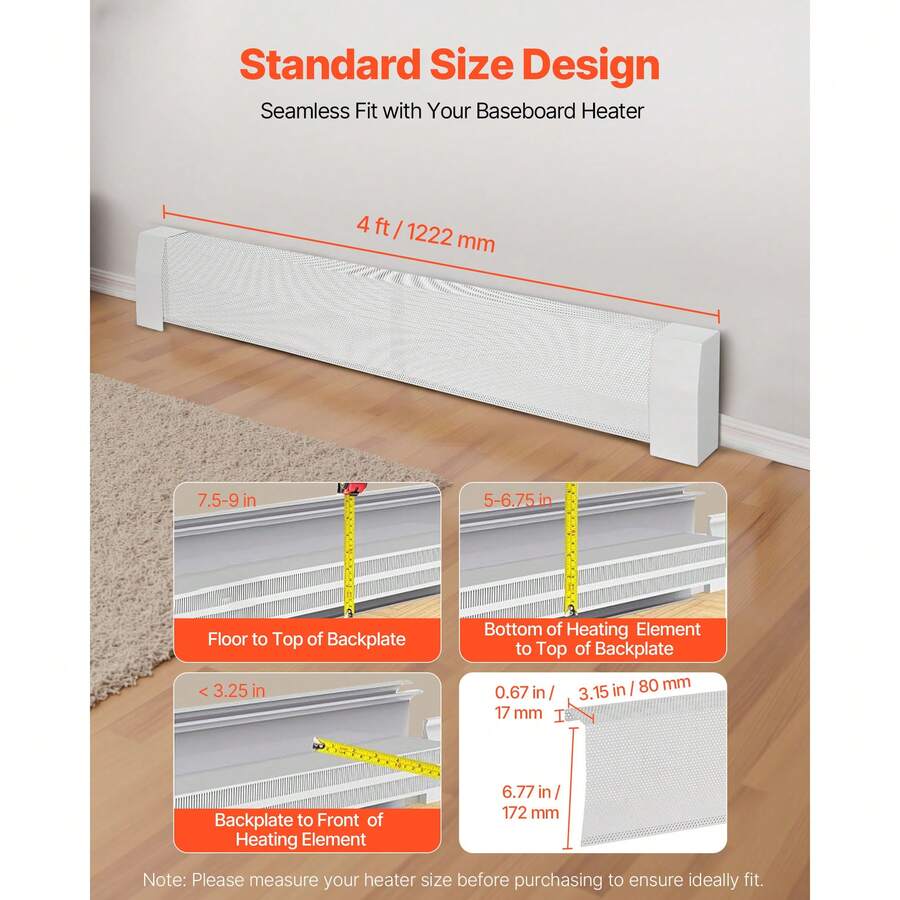

The stated fit guidance calls for 7.5–9 in from the floor to the backplate top, 5–6.75 in from the heating-element bottom to the backplate top, and depth below 3.25 in. These measurements are planning guidance, not a universal fit guarantee for every brand or older installation.

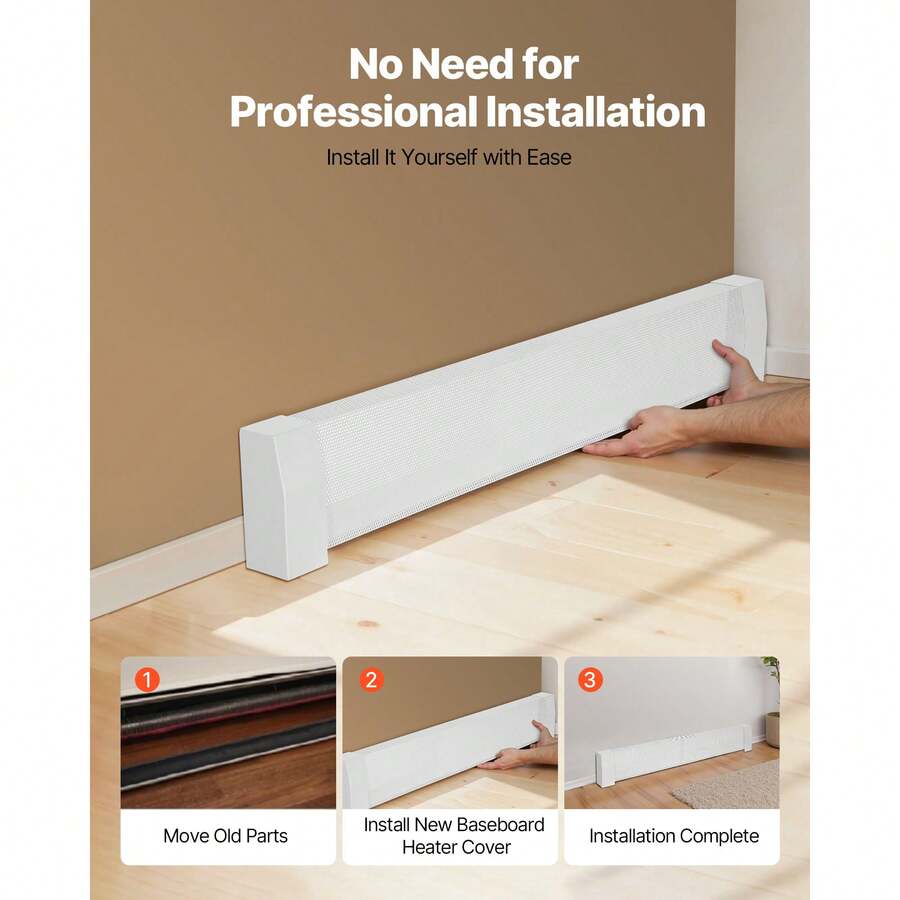

Installation overview

1. Turn the heating system off and allow all nearby surfaces to cool completely.
2. Remove the existing front only after recording how it is attached.
3. Compare the new panel length and profile with the backplate before final attachment.
4. Secure the cover without bending it into contact with the heating element.
5. Restore operation only after confirming airflow paths and clearances remain open.

Care and safety

Do not install the panel while the heating system is operating or hot. Avoid sharp metal edges, use suitable protective equipment, and keep the cover clear of the heating element, valves, wiring, and service points. If the existing unit is damaged or corroded, have it inspected before covering it.

This cover does not repair a heater, change its rated output, or make an incompatible unit safe. Installation conditions vary, and local building or heating requirements may apply. Seek qualified help if mounting points, clearances, or the original enclosure are uncertain.

Before ordering

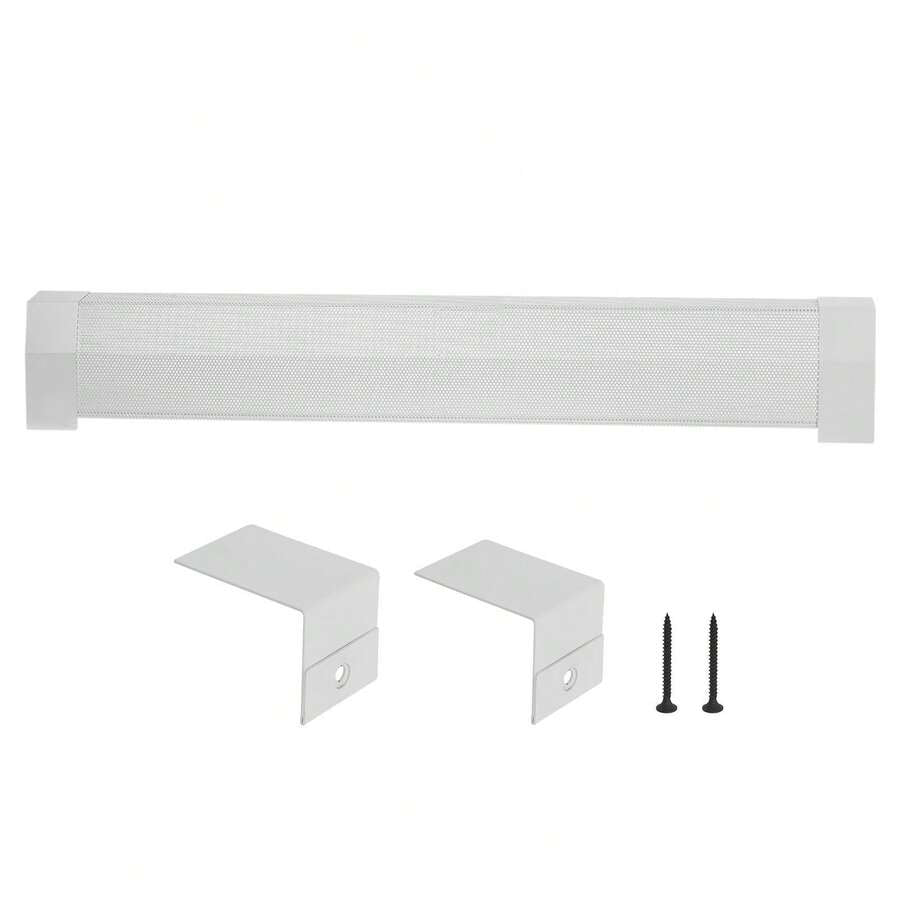

Confirm the selected length and all fit measurements before purchase. Exact included fasteners, end caps, brackets, and compatibility with a particular manufacturer are not promised unless shown for the selected option. Product photos may show an example installation rather than every included component.

Frequently asked questions

Need help confirming a detail? Email support@trieel.com with the product link and the option you are considering.
